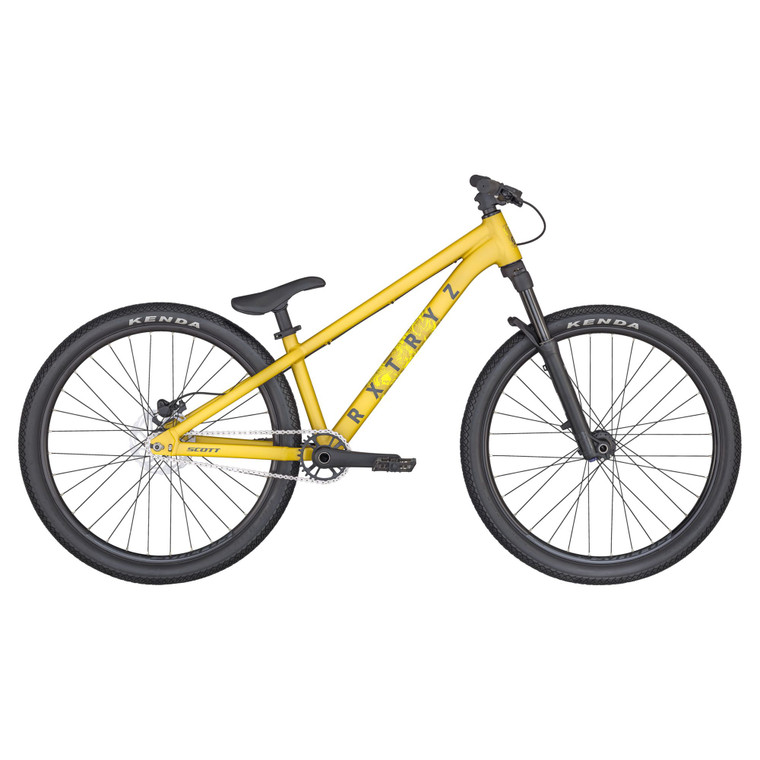

SCOTT Roxter YZ 0.1 Bike Jump Bike

SCOTT Roxter YZ 0.1 Bike - One Size

Scott Bikes
SKU:
294442
Availability:
7/10 days
£999.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

The SCOTT Roxter is built around a high-end alloy dirtjump mountain bike frame. Flips, whips or just jibbin' through the streets on your way home from school - the Roxter is down to get down.

Please note that bike specifications are subject to change without prior notice



Roxter YZ 6061 AlloyHydroformed tubingDisc Dropout / horizontal for 135x10mm single speed
ForkManitou Circus ExpertAir / Comp. Reb. adjust / 20mm thru axle / 100mm travel
CranksetProwheel MPX-CR094S-TT / 165mm / 30T
BB-SetProwheel BSA 73mm
ChainKMC Z1
CassetteSprocket / 14 T
BrakesTektro HDM280 rear Hydr. Disc
RotorTektro / 6 Bolt / 160mm
HandlebarSyncros Hixon 2.0 Rise31.8mm / 800mm / 20mm RiseSyncros Pro DH lock-on grips
H'stemSyncros XM1.531.8mm / 40mm / 0°
SeatpostSyncros DJ1.5 / Pivotal / 31.6mm
SeatSyncros DJ1.5 / Pivotal
HeadsetSyncros OE Press Fit E2 / Tapered 1.5"-1 1/8"OD 50/62mm / ID 44/56mm
Hub (Front)Formula DHL-92 / 110x20mm / thru axle
Hub (Rear)Formula DC42-Nw/tracknut / single Speed
SpokesStainless 14G / black / 2.0mm
RimsSyncros DP25 Disc / 32H
Front TireKenda 3-Sixty30TPI / wire / 26x2.25"
Rear TireKenda 3-Sixty30TPI / wire / 26x2.25"
PedalsWellgo B107.N flat
Approx weight in KG11.5 (with tubes)
Approx weight in LBS25.35 (with tubes)
Max. System Weight128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.

                    M
A head tube angle                 69.0 °
B head tube length                 120.0 mm
C top tube horizontal                 575.0 mm
D standover height                 668.0 mm
E BB offset                 -35.0 mm
F BB height                 303.5 mm
G wheel base                 1,044.0 mm
H BB center to toptube center
I BB center to top of seattube                 310.0 mm
J seat angle                 73.0 °
K chainstay                 392.5 mm
L reach                 408.0 mm
M stack                 563.0 mm
N stem length                 40.0 mm
0 trail
